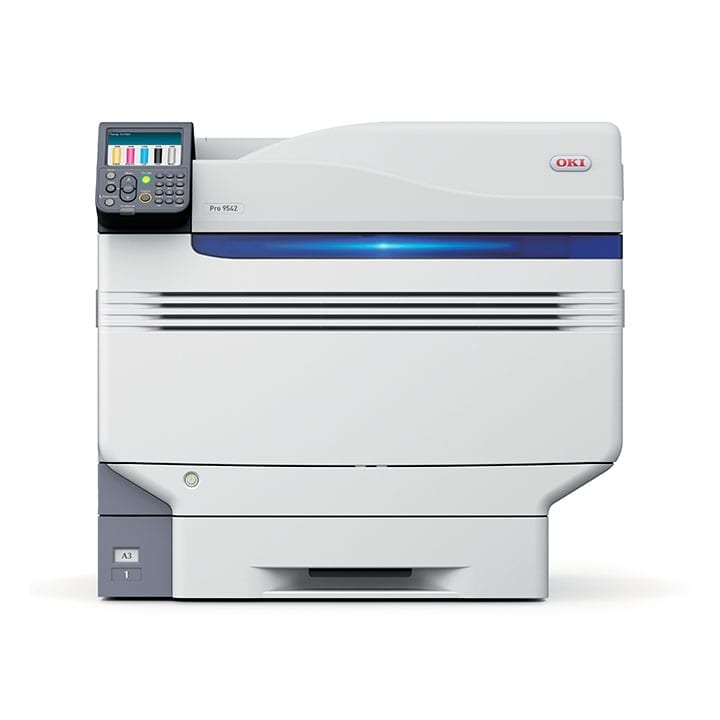

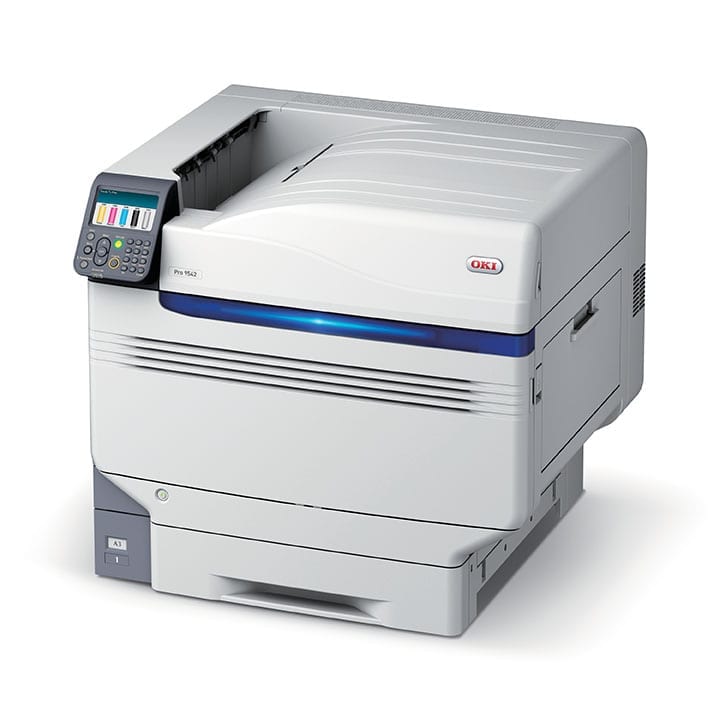

OKI Pro9542 (CMYK + White)
OKI Pro9542 (CMYK + White)

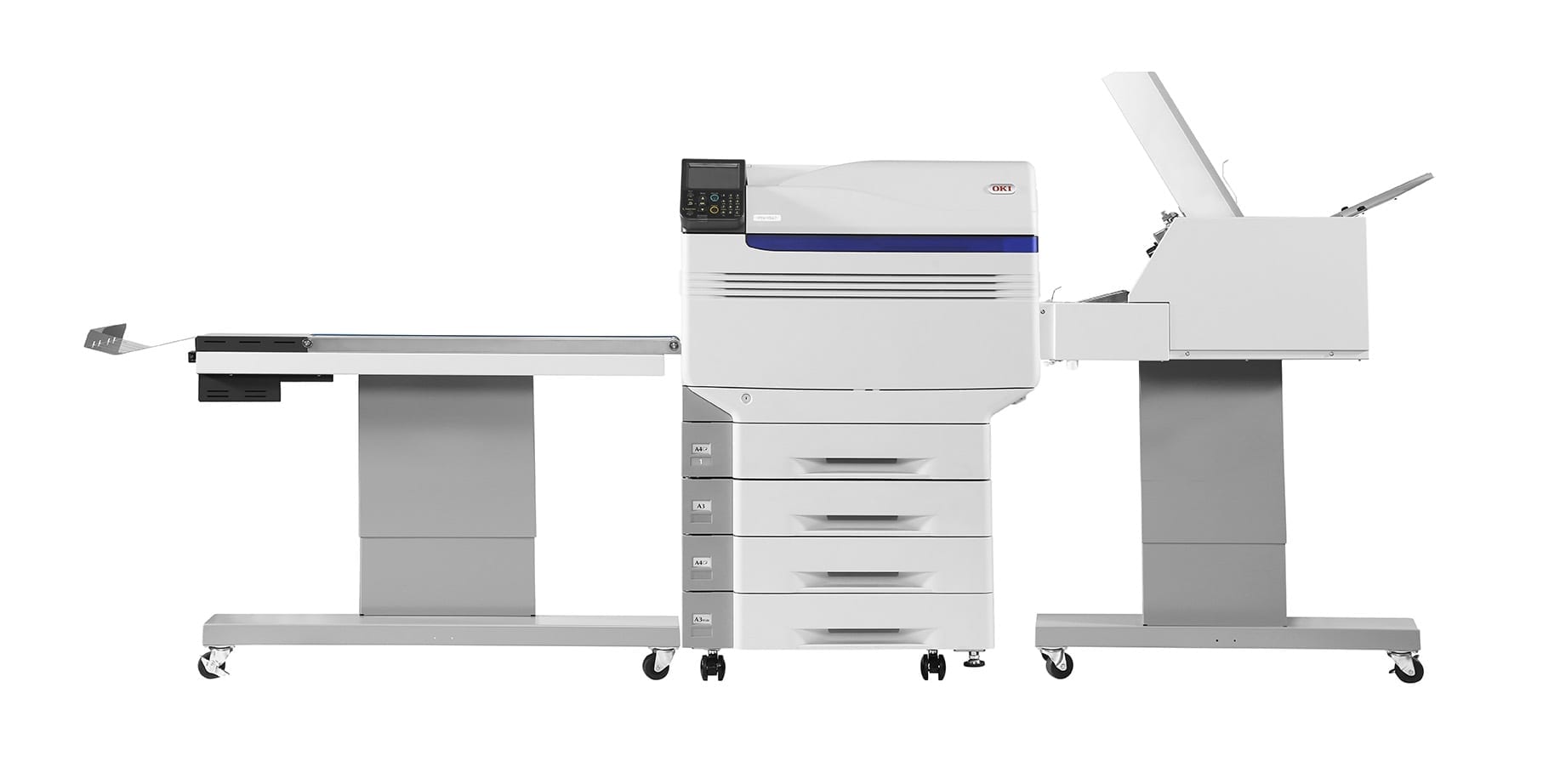

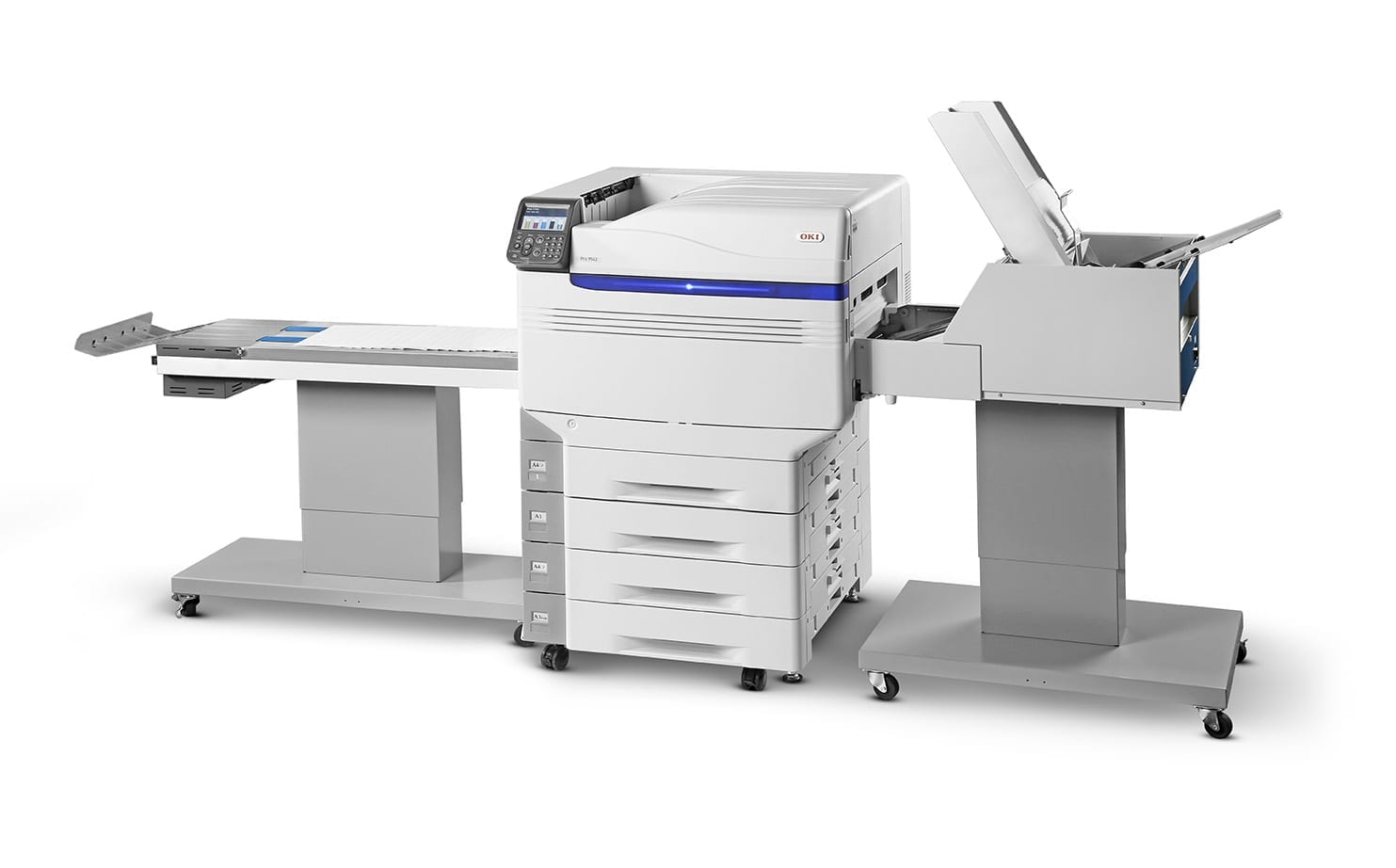

The OKI Pro 9542 is a professional five-colour A3+ printer offering CMYK plus white toner for outstanding graphics, packaging, and proofing. Perfect for short-run, high-impact printing with vibrant colour accuracy and media flexibility.
Product Benefits
Key Features
- GHS Chemical Label Printer
- 5-Colour Toner System with White Ink
- 50ppm Mono Output
- 50ppm Colour Printing
- 8-Second First Page
- 2400dpi High Resolution
- 530-Sheet Main Tray
- 300-Sheet Multi-Purpose Tray
- Automatic Duplex Printing
- 1.2GHz High-Performance Processor
- 2GB Memory Capacity
- USB and Network Connectivity
- Compatible with Windows & Mac
Brilliant Colour with Solid White
- Full CMYK colour plus solid white for bold, high-impact designs
- Ideal for dark, coloured, or transparent media
- Perfect for packaging, signage, and promotional materials
Vibrant Finish and Professional Quality
- Digital LED and Multi-Level ProQ technology for precision and vibrancy
- Sharp, consistent output for both small and large print runs
- High print speeds to meet tight deadlines
Media Flexibility
- Print in-house on a wide range of substrates
- Supports heavy stock and specialty media for creative freedom
Fast, On-Demand Printing
- Quick turnaround times for short-run and custom jobs
- Reduce outsourcing and retain full control over quality
- Ultra-high capacity toners for cost-effective production
🧩 Overview
Brilliant colour
Print in a full range of CMYK plus solid white
Vibrant finish
High-quality results with digital LED and Multi-Level ProQ technology
Media flexibility
Print in-house on dark and transparent media
Speedy turnaround
Fast, on-demand graphic arts printing in-house
🎥 Videos
⚙️ Specification
Printing Technology | Digital 5 LED Full-color Electrophotographic Printing Method |
---|---|
Print Resolution | 1200 x 1200 dpi (2 levels) 1200 x 600 dpi (16 levels) 600 x 600 dpi (2 levels) Physical dot pitch: 1200 dpi |
Warm-up Time | Approx. 50.0 seconds from power-on Approx. 35.0 seconds from power save |
First Print Out Time | Color: Approx. 8.0 seconds Mono: Approx. 8.0 seconds |
Print Speed | A4(Landscape) 50 ppm color, 50 ppm mono A3 28 ppm color, 28 ppm mono |
Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
Protocol | TCP/IP, EtherTalk |
Printer Language | Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM 5577H-02 Emulation |
Supported OS (Click here for latest OS) | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
Memory (Std./Max.) | 2GB/2GB |
Hard Disk Drive | (Optional) 160 GB |
Font | Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
Paper Size | Tabloid extra (12″ x 18″), Tabloid (11″ x 17″), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3″ x 5″) (75 x 125mm), A3, A4, A5, A6, B5, B4, A3+, SRA3, SRA4, Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K |
Paper Weight | Tray 1 : 52 – 320 gsm (Optional)Additional Tray : 52 – 320 gsm Multi-purpose tray : 52 – 360 gsm |
Input Capacity | Tray 1 : 530 sheets (Optional)Additional Tray : 530 sheets Multi-purpose tray : 300 sheets |
Output Capacity | Face Down : Max. 610 sheets Face Up : Max. 300 sheets |
Dimensions(WxDxH) | 699 x 625 x 640 mm |
Weight(includes supplies) | Approx. 116.5 kg |
Weight(not includes supplies) | Approx. 91.0 kg |
Operating Environment | Operating: 10 – 32 °C, 20 – 80 %RH Storage: 0 – 43 °C, 10 – 90 %RH No condensation |
Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
Power Consumption | Operating: Max. 1,500W / Ave. 1,100W Idle: 40W Power Save: 30.0W Deep Sleep: 4.0W Auto-Off: 0.4W |
Safety & Environment Regulation | Energy Star, EMC-Directive, CE Mark, GS Mark, CCC Mark, cULus Mark |
Noise Level | Operating :Approx. 57 dBA Idle: < 34 dBA Power Save: < 30 dBA or Background level |
Duty Cycle | Recommended: 25,000 pages/month Maximum: 300,000 pages/month |
In the Box | Manuals, DVD-ROM, Starter toner cartridge x 5, Image Drum x 5, Power cable |
🔑 Key Features
Key Features
- CMYK + white printing using digital LED and multi‑level ProQ technology for sharp 1200 × 1200 dpi resolution:contentReference[oaicite:0]{index=0}.
- High‑speed performance with up to 50 ppm (A4) and 28 ppm (A3) print speeds and first‑page output in as little as 8 seconds:contentReference[oaicite:1]{index=1}.
- Flexible media handling from A6 to SRA3 and banners up to 1.3 m long; supports paper weights up to 360 gsm single‑sided and 320 gsm duplex:contentReference[oaicite:2]{index=2}.
- Print on speciality media such as film, polyester, waterproof paper, transfer paper and glossy stock:contentReference[oaicite:3]{index=3}.

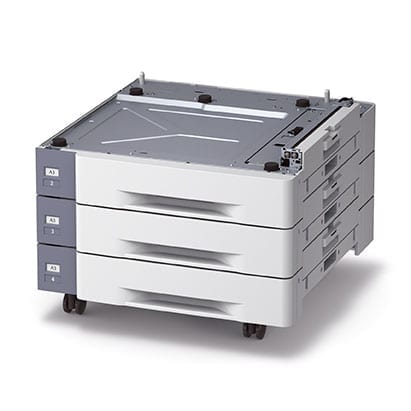

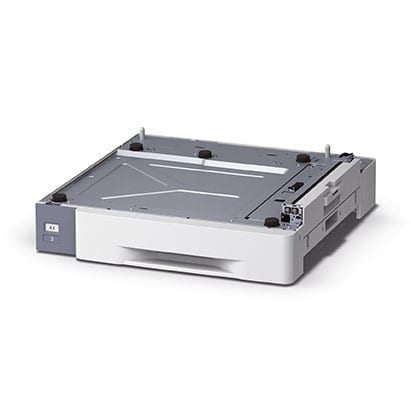

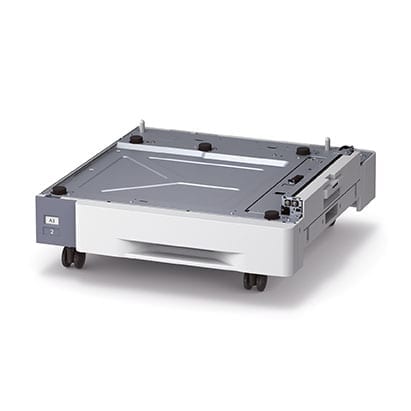

- Large paper capacity: 530‑sheet standard tray expandable up to 2,950 sheets, plus a 300‑sheet multipurpose tray for envelopes, labels and heavy media:contentReference[oaicite:4]{index=4}.
- Energy‑efficient design and high‑capacity toner cartridges for a low total cost of ownership; use genuine OKI consumables for best results:contentReference[oaicite:5]{index=5}.
- Ideal for packaging, signage, proofing and on‑demand printing—delivers vibrant colour and solid white spot colour for professional, eye‑catching output:contentReference[oaicite:6]{index=6}.
🧰 Support Resources
Support Resources
❓ FAQ's
Frequently Asked Questions
What makes the OKI Pro9542 unique?
It prints CMYK plus solid white in a single pass using digital LED technology, producing vibrant colour and white spot highlights for packaging, signage and proofing.
What print resolution does it offer?
It produces sharp 1200 × 1200 dpi output thanks to the digital LED and multi‑level ProQ technology:contentReference[oaicite:7]{index=7}.
How fast can it print?
The printer delivers up to 50 pages per minute on A4 and 28 pages per minute on A3, with a first page out in approximately 8 seconds:contentReference[oaicite:8]{index=8}.
What media sizes and weights are supported?
The Pro9542 handles everything from A6 to SRA3 and banners up to 1.3 m long, and can print on paper weights up to 360 gsm single‑sided and 320 gsm duplex:contentReference[oaicite:9]{index=9}.
Can it print on special materials?
Yes. It supports film, polyester, waterproof paper, glossy stock, transfer paper and other specialty substrates via the multipurpose tray:contentReference[oaicite:10]{index=10}.
Does it integrate with colour‑management systems?
An optional EFI Fiery XF front‑end provides advanced colour management and proofing capabilities:contentReference[oaicite:11]{index=11}.
Is it cost‑effective to operate?
The energy‑efficient design and high‑capacity toner cartridges help keep running costs low; using genuine OKI consumables is recommended for optimum performance:contentReference[oaicite:12]{index=12}.
